How Does Car A/C Work? Complete Guide to Your Car’s Air Conditioning System
Reviewed by Eric Shepherd, ASE-Certified Technician (and Gemba’s Accidental Social Media Star!)
Air conditioning can feel more like an essential than a modern-day convenience when you’re sitting in traffic on a 110-degree day in Phoenix with cold air blasting from the vents.
Your car’s AC doesn’t simply make cold air, though. It uses refrigerant, pressure changes and several components to remove heat from the passenger compartment and release it outside the vehicle. The process might seem complicated: refrigerant circulates through a closed system. Heat is absorbed from the cabin and carried through the system to be released outside. While this is happening, the system moves cooled, dehumidified air through the vents and into the cabin.
The basic concept is straightforward once you are able to follow the refrigerant through the system and around the vehicle.
Here’s how your car’s AC system works, what each major component does and what can happen when something in the process stops doing its job.
How Does a Car AC System Work?
Your vehicle’s AC is constantly moving heat throughout the system. As it does this, refrigerant is moving through the system and changing pressure and temperature along the way so that heat can be absorbed from the cabin and released outside.
The basic refrigeration cycle goes like this:
- Compressor: The compressor circulates refrigerant through the system and compresses the refrigerant vapor, creating the pressure difference necessary for the refrigeration cycle.
- Condenser: Hot, high-pressure refrigerant moves through the condenser, where heat is released to the outside air.
- Expansion device: An expansion valve or orifice tube restricts refrigerant flow, creating a pressure drop before the refrigerant enters the evaporator.
- Evaporator: Refrigerant moving through the evaporator absorbs heat from air passing across it. That cooled and dehumidified air is then directed into the cabin.
- Back to the compressor: The refrigerant returns toward the compressor and the cycle begins again.
All of these steps happen over and over while the system is on and operating. That’s also why an AC problem doesn’t automatically mean the compressor has failed or you’re low on refrigerant. Cooling relies on the entire system working together, including components that move the cabin air and electronic controls that tell the system what to do and what temp it needs to be set at.
What Are the Main Parts of a Car AC System?
Knowing the major components can make it easier to understand why different AC symptoms are able to point technicians in different directions.
AC Compressor
Your AC compressor works to keep refrigerant flowing and circulating through the system. It helps establish the high- and low-pressure sides of the system necessary for the refrigeration cycle. Depending on your vehicle, the compressor might be controlled in a few different ways. For example, modern systems may use sensors, control modules and different compressor designs rather than relying on the traditional on-and-off operation many drivers associate with older vehicles. If for some reason the compressor or its controls aren’t working correctly, it can negatively affect the cooling performance or cause the system to stop working.
Condenser
When you open your hood, the AC condenser is typically located toward the front of the vehicle near the radiator. The job of the condenser is to reject the heat carried by the refrigerant. Air moving across the condenser helps it accomplish this, which makes it important to have adequate airflow to the condenser to ensure proper AC performance.
If the condenser is damaged or airflow across it is restricted, it may not release heat efficiently, affecting overall AC performance. This becomes especially important in Arizona where the condenser is trying to release heat into an already extremely hot environment.
Evaporator
The evaporator is hidden inside the vehicle’s HVAC housing, so you won’t really see it unless you are taking things apart.
As the refrigerant moves through the evaporator, it absorbs the heat from air passing across the evaporator’s surface. The blower then sends the cooled air through your vents. It can also work to remove moisture from the air. The moisture then condenses on its surface and will drain underneath the vehicle, which is why you might find a clear puddle of water under your car on a hot summer day. Don’t worry, it’s completely normal.
Expansion Valve or Orifice Tube
Before refrigerant enters the evaporator, the pressure needs to drop. Depending on your vehicle and the design of the AC system, an expansion valve, orifice tube or another type of metering device controls the refrigerant flow to create the necessary pressure change. Not every vehicle will use the same setup, which is why AC diagnosis shouldn’t be based on one universal diagram for how it works.
Refrigerant
Refrigerant is the working fluid responsible for carrying heat through the AC system. As its pressure changes through the system and cycle it can absorb heat inside the vehicle and release heat outside.
One important thing to understand is that refrigerant isn't consumed like fuel. In a properly functioning, sealed A/C system, refrigerant continuously circulates through the system rather than being used up. If the refrigerant charge is low, the system should be inspected to determine why. If you find that the refrigerant level is low, you will want to consider why it is low and look for where there could be a leak.
Receiver-Drier or Accumulator
Depending on the system your vehicle has been equipped with, it may use a receiver-drier or accumulator. Both of these components serve important roles when it comes to the management of the refrigerant and help protect the system from moisture and contaminants, but the location and exact function will depend on how your system is set up.
Blower Motor and Cabin Airflow
The AC in your car can be complicated. The refrigeration side of the system can be doing its job while the driver might not get the proper airflow from the vents that is expected. That’s because your car utilizes a blower motor, which moves the air through the system and into the cabin. If you have a clogged cabin air filter or a blower issue, you might notice yourself sweating even though there isn’t an issue with the AC system. It is important to note the difference between air that isn’t cold, and air that isn’t moving when it comes to your AC diagnosis.
Sensors, Controls and Electrical Components
The AC system on modern vehicles generally includes pressure sensors, switches, temperature sensors, fuses, relays, wiring, control modules, actuators and HVAC blend doors to deliver the perfect temperature. All of these sensors and controls determine everything from if the compressor can operate to where the air comes out of the vents and if the cabin should receive cold or hot air.
Does Car A/C Pull Air From Outside?
Most modern vehicles allow the AC system to operate using either outside air or recirculated cabin air. The fresh-air mode allows outside air to enter the system before it is conditioned and sent through the vents. The recirculation mode pulls air from the inside of the cabin and sends it back through the system.
Recirculation can be helpful when you’re coming out of work on a hot 110-degree day and want to cool the vehicle more efficiently after the initial hot cabin air has been released. Another pro tip is to release some of that hot air from the cabin first, like driving briefly with the windows down or holding the door open a little longer than you normally would.
Does Car A/C Use Gas or the Battery?
Depending on what you drive, your AC can use either gas or the battery. For example, if you drive a standard gasoline or diesel-powered vehicle, the AC will place an additional load on the engine and could affect the fuel economy. If you drive a hybrid or an EV then the system will work a little differently and might use electrically driven AC components, rather than a conventional compressor that’s mechanically driven by the engine.
Why Does Car A/C Stop Working?
There are many reasons why your car AC might stop working, especially because problems can arise from different parts of the system, including:
- Refrigerant leaks
- Compressor problems
- Condenser damage or airflow problems
- Electrical or control faults
- Blower problems
- Temperature or blend-door problems
- Sensor failures
- Other HVAC-system faults
Your system will provide a clue, but it doesn’t always identify the failed component. For example, if you are experiencing weak airflow from the vents, it will be a different starting point than if you have great airflow from the vents, but the air just isn’t cold.
Why Does My A/C Work While Driving but Get Warm at Idle?
If you notice that your AC feels cold while you’re cruising on the 101 but starts to warm up when you’re stopped on the off-ramp waiting for the light to turn green, the vehicle speed and airflow can be useful diagnostic cues. The real issue that you are experiencing, however, can have several causes. So, the driving-versus-idling difference isn’t a 100% accurate way to diagnose a specific component.
Does Car A/C Refrigerant Need to Be Recharged?
The refrigerant in your vehicle isn’t something that should routinely be replaced or topped off. Unlike gasoline, refrigerant isn't consumed as you drive, and unlike engine oil, it isn't routinely replaced because it becomes dirty or degraded through normal operation. Your AC system is designed to contain and recirculate refrigerant rather than consume it during normal operation.
If you notice that it’s low, the best question to ask is: Where did it go? Leaks can occur over time and just adding more refrigerant won’t solve the issue because it will continue to leak until the source of the leak is identified. If you do recharge it, the symptoms may improve for a short amount of time, but it will continue to leak, and the problem will get worse again over time.
Professional AC service also involves specialized refrigerant-handling requirements that meet the EPA’s standards. The EPA requires technicians servicing motor-vehicle AC systems to be properly certified under Section 609 and use approved refrigerant-handling equipment.
Is Water Under Your Car After Using the A/C Normal?
In general, yes, water under your vehicle after using the AC is completely normal. As warm air passes over the cold surface of the evaporator it will condense moisture and your system was designed to drain that moisture under the vehicle.

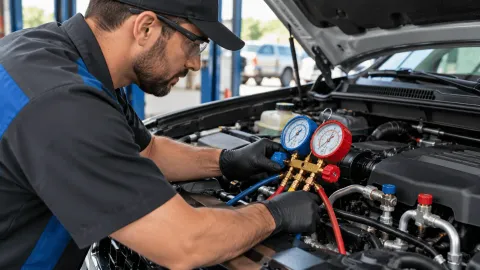

How Do Technicians Diagnose Car A/C Problems?
Diagnosing your vehicle’s A/C problems requires a little more than hooking up a can of refrigerant and hoping the air gets colder. The starting point is generally what brought the vehicle in, in the first place.
Eric Shepherd, an ASE-Certified Technician at Gemba Automotive, says one of his first steps is determining exactly what the driver means when they say the A/C isn't cold:
“I first clarify with them if there is any volume out of the vents regardless of temperature. Once I've established the system we're diagnosing, let's say the vent volume is present; we go from there. Next, I check the vent temperatures, check to see that the belt is in sound condition, and the Compressor is engaging. If it isn't, I would assume the system is either low on refrigerant and check the levels and for potential leaks, or an electrical fault and confirm that power and ground are present at the compressor.”
The goal should be to identify what failed system or component is causing problems before a repair is recommended.
How Arizona Heat Affects Your Car's A/C
It’s easy to understand how or why the Arizona heat is so brutal on your car’s AC system. It requires a serious workload to get your car to cool down and keep it cool.
For example, consider that your car is outside baking for eight to nine hours a day while you are at work. The outside temperatures are well into the 110-plus range, and the sun has been beating down on the glass, seats, dashboard, and hood. When you climb in and ask your vehicle to give you cold AC, it’s not just about cooling you off, but everything around you. The system is fighting the heat stored throughout the cabin while the condenser is trying to reject the heat into extremely hot air outside.
Shepherd says some reduction in performance during Arizona's hottest conditions doesn't automatically mean something is broken.
“In the valley, our conditions are severe. Drivers should expect drops in performance during peak summer months, and this is normal. If you park in direct sun, it will certainly take longer to cool you off due to the cabin heat load and the dash being so hot. It must also cool the HVAC box hidden inside your dash, and this can take some time.”
There is a difference between your AC system taking longer to pull down cabin temperatures after sitting in direct Phoenix sun and a system suddenly blowing hot.
Shepherd says Arizona drivers should also pay attention to what's happening with the engine's cooling system:
“What's not normal is when the temperature goes completely hot while driving or when your engine temperature gauge is moving toward hot. At times, when our guests believe they have an A/C fault, it could be that the engine cooling system has failed due to a leak or something similar, causing low engine coolant levels. The A/C condenser is positioned in front of, and literally right next to, the radiator. When the radiator runs low on engine coolant, it overheats and causes its neighbor, the condenser, to overheat as well and thus cease to perform properly.”
Can You Prevent Car A/C Problems?
Despite how well you take care of your vehicle, it is impossible to prevent every compressor, sensor or seal from eventually failing. But paying attention to these systems can help you catch small problems before they turn into larger problems that leave you without AC on one of the hottest days of the year.
When Should You Have Your Car A/C Inspected?
Don’t let your vehicle become a rolling sauna before you bring it into a repair shop with AC concerns. Consider having the system inspected if:
- The A/C isn't getting cold
- Cooling performance has noticeably changed
- Cooling becomes inconsistent
- The A/C works differently at idle than while driving
- Airflow from the vents is weak
- You hear unusual noises when the system operates
- You notice unusual odors from the vents
- Refrigerant repeatedly becomes low
- The system stops working altogether
Schedule an Appointment with Gemba Automotive for AC Repair Service
Frequently Asked Questions About Automotive Air Conditioning Systems
How does car AC work?
A car's AC circulates refrigerant through a closed system to transfer heat. The compressor, condenser, expansion device and evaporator work together to absorb heat from the passenger compartment and release it outside while cooled, dehumidified air is sent through the cabin vents.
Does car AC use gas?
In conventional gasoline vehicles, operating the AC places additional load on the engine and can affect fuel consumption. Many hybrids and EVs use electrically driven AC compressors, so the exact operation depends on vehicle design.
Does car AC pull air from outside?
Fresh-air mode brings outside air into the system, while recirculation mode reuses air already inside the cabin.
Why is my car AC not blowing cold air?
There are many possible causes, including refrigerant loss, compressor problems, condenser or airflow issues, electrical faults, sensors and controls. The symptoms and vehicle design need to be evaluated to determine the actual cause.
Does car AC refrigerant need to be recharged regularly?
Refrigerant shouldn't simply be consumed during normal AC operation. If the system is low, a leak or another issue may need to be investigated rather than assuming refrigerant routinely “runs out.”
Why does my car AC get warm when I'm stopped?
Several issues can cause AC performance to change between driving and idling, including problems related to airflow or other components in the AC and cooling systems.
Is water dripping underneath my car after using the AC normal?
Moisture can condense on the evaporator and drain beneath the vehicle. Clear water can be normal AC condensation, although other automotive-fluid leaks should be identified rather than assumed to be water.
How do mechanics diagnose car AC problems?
Technicians start with the symptoms and systematically evaluate the appropriate systems. Depending on the vehicle and complaint, that can include vent-temperature measurements, refrigerant pressures, compressor operation, leak detection, condenser airflow, electrical testing, and blower operation among other things.
